Virtual Private Cloud

<< ---------------------------------------------------------------- >>

A logically isolated virtual network that resembles a traditional network youd operate in your own datacenter.

AWS EC2 and VPC are very tightly coupled, as a result all VPC CLI commands are underneath EC2 CLI.

  • Are Region Specific
    • you can use VPC peering and connect them across regions.
  • can create up to 5 per region
  • every region has a default one
  • up to 5 IPV4 or 5 IPV6 CIDR Blocks
  • most components dont cost anything
  • Things that do:
    • VPC Endpoints, VPN gateway, customer Gateway, IPV4 Addresses, Elastic IPs, DNS hostnames

Deleting a VPC

before being able to delete a vpc you have to delete the following:

  • security groups and NACLs
  • Subnets
  • route tables
  • internet gateways
  • gateway endpoints
  • egress-only internet gateeways (EO-IGWs)

Default Route/ Catch-All-Route

0.0.0.0/0 represents all possible IP addresses, gives access from anywhere or to the internet without restriction.

Internet Gateway

allows both inbound and outbound internet traffic.

It provides a target in ur VPC route table for internet routable traffic. Performs NAT(Network Access Translator) - network access translation for instances that have been assigned IPv4. NAT is not needed for IPv6 since IPv6 addresses are public.

Egress-Only Internet Gateway(EO-IGW)

specifically for IPv6 when you want to allow outbound traffic to the internet but prevent inbound traffic from the internet. a normal IGW does not restrict inbound traffic.

Virtual Private Gateway

connects VPC to private external network

Route Tables

Used to determine where network traffic is directed. IGW → Router → Route Table → public subnet

you have a destination and a target → you basically assign an IP address to a target at the router level.

A subnet can only be associated with one route table at a time.

NAT Gateway

allows private instances (eg. virtual machines) to connect to services outside the VPC.

Gateways are usually a networking service which sit between two different networks.

A NAT Gateway (Network Address Translation Gateway) is a managed cloud service (like in AWS or Azure) that lets resources in a private network (with no public IP) securely access the internet or other networks by translating their private IP to a single, static public IP, while blocking unsolicited inbound connections

IPv6

DNS64 and NAT64: NAT gateway supports network address translation from IPv6 to IPv4, known as NAT64

DNS64 - IPv6-only workloads running in VPCs can only send and receive IPv6 network packets. Without DNS64, a DNS query for an IPv4-only service will yield an IPv4 destination address in response and ur IPv6-only service cannot commjnicate with it. To bridge this communication gap, you can enable DNS64 for a subnet and it applies to all the AWS resources within the subnet.

NACLs

Stateless virtual firewall at subnet level

Stateless means they have both allow and Deny rules. VPC creates a Default NACL for you. it has inbound and outbound rules.

A subnet can only belong to a single NACL

there are rule numbers, they are applied by the lower the value of the rule is. as soon as it hits a lower value rule, it doesnt evaluate any higher value rules for that connection

Security Groups

Stateful virtual firewall at instance level

only have allow rules.

16 security groups per elastic network interface (ENI) default is 5.

ENI is a virtual network card that you can attach to an EC2 instance to provice network connectivity within a VPC.

You can attach and detach ENIs to same or different instances rerouting the same traffic.

they do not filter traffic destined to and from the following:

  • AWS DNS
  • AWS Dynamic Host Configuration Protocol (DHCP)
  • EC2 instance metadata
  • ECS task metadata endpoints
  • license activation for windows instances
  • Amazon Time Sync Service
  • Reserved IP addresses used by the default VPC route. have inbound/outbound rules.

Stateless Vs. Stateful Firewalls

Stateless like NACL are not aware of the state of the request. In both directions they’ll treat you like a stranger and stop you both ways and do a rule check.

Stateful Firewalls are aware of the state of the requests. → responses for requests originated outbound are allowed back through bc it remember where the response came from.

Security Groups vs NACLs

Network Access Control Lists acts as a virtual firewall at the subnet level. You can create allow and deny rules You can block a specific IP address NACL is directly connected to the internet geteway

Security groups: acts as a virtual firewall at the instance level andn they implicitly deny all traffic, you create only allow rules.

Public Subnets

Private Subnets

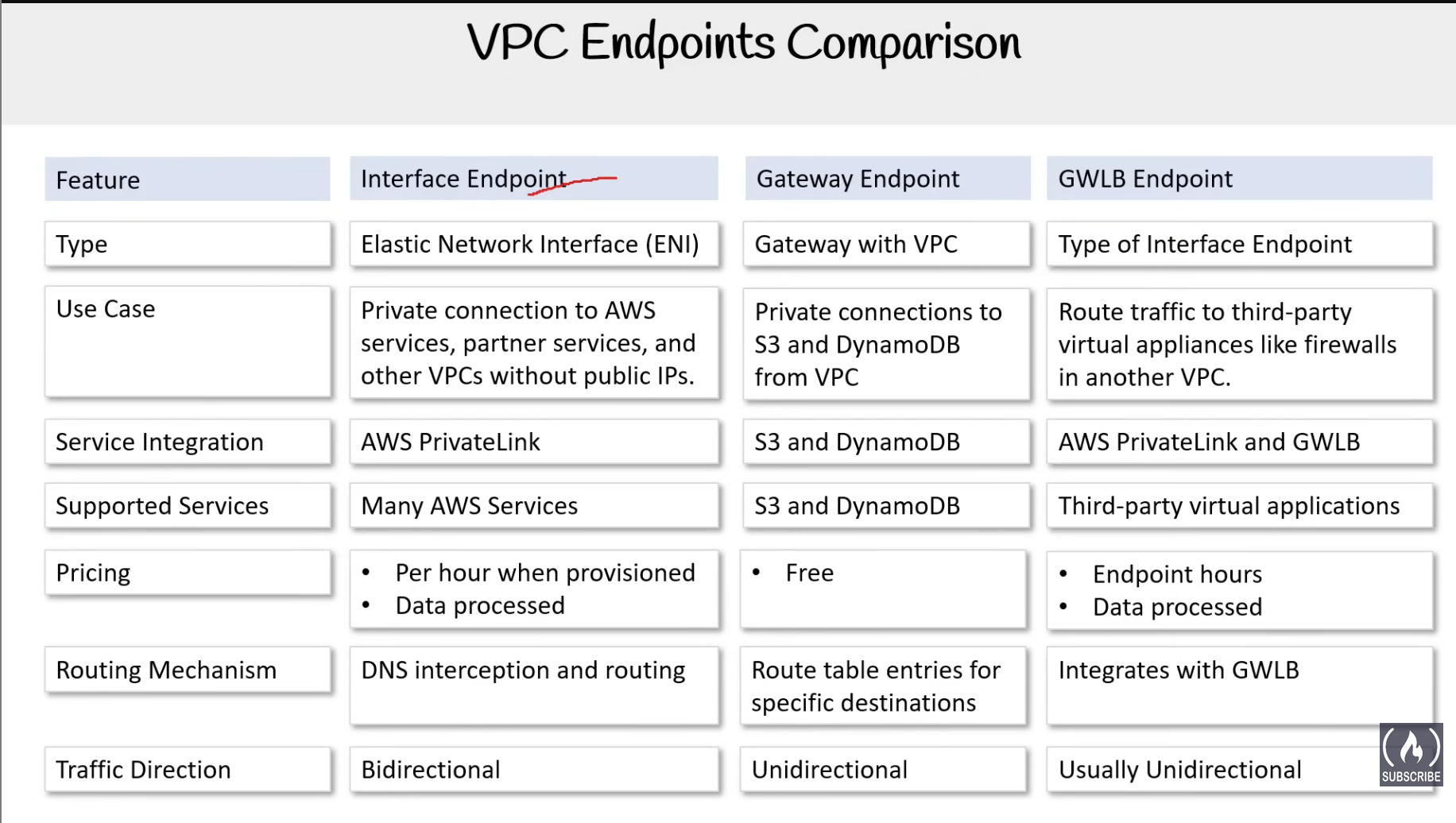

VPC Endpoints

If you dont want the services to talk to each ohter over the internet and never leave the AWS environment you can set up a VPC endpoint

3 types:

  1. Interface Endpoints
  2. Gateway Endpoints
  3. Gateway Load Balancer Endpoints

is what VPC Endpoints uses under the hood. Its basically the same thing.

You can create Interface Endpoints and Service Endpoints and connect ur VPC to to other SaaS products privately, as if they were running in ur own VPC.

Interface Endpoints

are Elastic Network Interfaces(ENI) with a private IP address. Serves as an entry point for traffic going to a supported device.

Gateway Load Balancer Endpoints

Powered via PrivateLink, allows you to distribute traffic to a fleet of network virtual appliances.

In a AWS Gateway Load Balancer (GWLB), “appliances” refer to ==third-party virtual network functions (VNFs) like firewalls, intrusion detection/prevention systems (IDS/IPS), and deep packet inspection (DPI) tools that inspect and filter traffic==, which the GWLB seamlessly scales and manages, allowing organizations to use their preferred security solutions in the cloud. These appliances (e.g., from Palo Alto, Fortinet) run as virtual machines, and GWLB makes them highly available and scalable by distributing traffic across multiple instances

Gateway Endpoint

provides reliable connectivity to Amazon S3 and DynamoDB without requiring an internet gateway or a NAT device for your VPC.

VPC Peering

allows you to connect one VPC with another over a direct network route as if they are one VPC, using private IP addresses.

VPC Flow Logs

just logging network traffic coming into the different parts of the VPC, subnets, ENIs etc.

AWS Virtual Private Network - VPN

lets you establish a secure and private tunnel from your network to the AWS Global network.

AWS Site-to-Site VPN:

securely connect on premises network to VPC.

It has the following components:

  1. VPN connection - secure connection between the VPC and on-premises equipment
  2. VPN tunnel - encrypted connection for your data
  3. Customer Gateway (CGW) - provides information to AWS about your customer gateway device
  4. customer gateway device - physical device or software applicaiton on your side of the site to site vpn
  5. target gateway - generic term for the VPN endpoit on the amazon side of Site to Site
  6. Virtual Private Gateway - VGW - VPN endpoint on the amazon side that can be attached to a single VPC
  7. Transit Gateway - transit hub that can be used to interconnect multiple VPCs and on-premises networks, and as a VPN endpoint for the amazon side of the site-to-site VPN connection.

AWS Client VPN:

securely connect users to AWS or on-premises network.

  1. certificate based authentication (mutual authentication)
  2. active directory authentication(AWS directory service)
  3. federation authentication (single-sign-on SAML)
  4. uses a single tunnel
  5. use security groups for granular control
  6. USE Active Directory groups for granular control
  7. self service portal to download aws vpn client
  8. has 2 roles
    1. administrator - responsible for setting up and configuring service
    2. clients - the person who connects to the client VPN endpoint.

Bastion / Jumpbox

Jumpboxes are security hardened virtual machine that provide secure access to private subnets. Similar to client VPN. the security is different.

  • sits in the public subnet and then allows you to access ssh or RCP into a EC2 instance in your private subnet.
  • also known as bastions since its something that gives protection against attacks.
  • NATs should not be used as Bastions.
    • since they are only intended for EC2 to gain outbound access to internet and security updates.

AWS Resource Access Manager - RAM

allows you to share resources across your AWS accounts

VPCs can be shared with other aws accounts within the same account to centerally manage resources in a single VPC.

You share VPCs by sharing subnets, and you can only share non-default VPCs.

AWS Direct Connect

service for connecting on-premise to AWS

Connection Reqs:

  1. network is co-located with an existing aws direct connect location
  2. working with a Direct connect partner who is a member of AWS Partner network
  3. Working with independent service provider

Network Requirements

  1. must use single-mode fiber
  2. auto-negotiation for a port must be disabled for a connection with a port speed of more than 1 Gbps
  3. 802.1Q VLAN encapsulation must be supported across the connection
  4. Must support Border Gateway Protocol and BGP MD5 authentication

Supports:

  • both IPv4 & 6
  • ethernet frame size of 1522 or 9023 bytes

Maintenance:

  1. Planned
    1. schedule in advance to improve availability and deliver new features
    2. three notifications are provided 1, 5 and 10 calendars in advance
  2. emergency:
    1. Maintenance that isn’t planned in advance
    2. impacted customers are notified 60 mins prior to maintenance

Pricing:

  1. capacity
    1. maximum rate that data can be transferred
    2. larger the prot size the greater the cost
  2. port hours
    1. for amount of time a DC port is provisioned for use, regardless of data transfer.
    2. two connection types:
      1. dedicated - physical connection between network port and an AWS network port.
        1. billed per hour via AWS
      2. Hosted - logical connections between aws partner and aws network port.
        1. billing subject to the DIrect Connect Deliver Partner
  3. Data Transfer Out (DTO)
    1. Charged based on outbound traffic sent through Direct Connect to destinations outside of AWS
    2. Data transfer into the network is free
    3. Data transfer within the same region will not result in a cost

VPC Lattice

VPC lattice is a fully managed application networking service, you use to connect, secure and monitor services for your application Especially in a Microservice architecture.

Has

  1. service network - logical container for all services which can communicate with each other in the associated VPCs
  2. Listener - the protocol and port the service listens to. containes routing rules
  3. target group
  4. service directory - a central registry of all VPC lattice services that you own or are shared with your account

AWS Network Firewall

a stateful managed, network fiewall and IDS/IPS for VPCs

Filter outbound and inbound traffic at the perimeter of you VPC

  1. filter IGW trafic
  2. filter NAT gateway traffic
  3. Fiter VPN traffic
  4. Filter Amazon Direct Connect traffic
